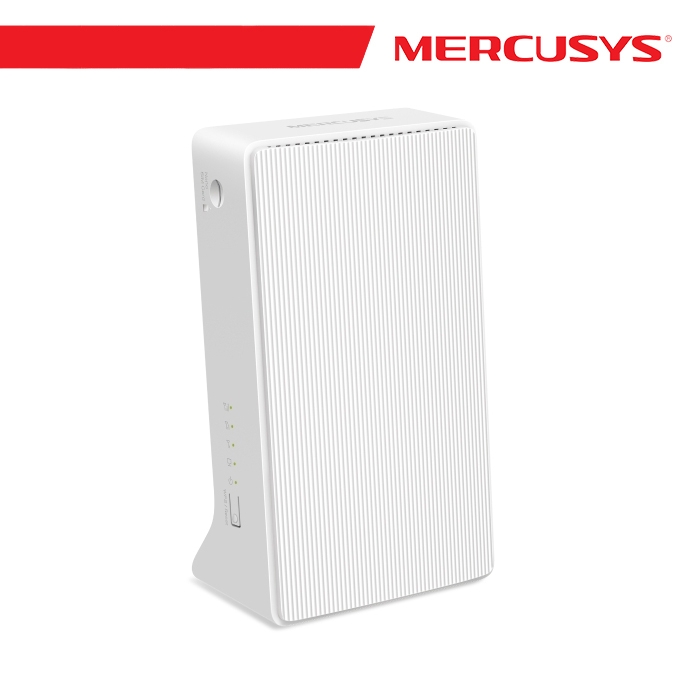

router 4g+ cat6 wi-fi dual band ac1200

• 4g+ network – enjoy the 4g+ cat 6 download speeds up to 300 mbps.
• plug a sim card and play – no configurations needed, compatibility of sim cards are assured by years of field tests.
• dual band 1200 mbps wifi – fast wifi speeds up to 300 mbps on the 2.4 ghz band and 867 mbps on the 5 ghz band.
• simultaneous connection– enjoy and share internet access with up to 64 wi-fi devices.
• wi-fi router mode – plug an ethernet cable into the lan/wan port for flexible access if you can't get a 4g connection.

wireless standards

ieee 802.11ac/a/b/g/n

frequency

5 ghz, 2.4 ghz

signal rate

867 mbps at 5 ghz

300 mbps at 2.4 ghz

reception sensitivity

11g 6mbps: -95dbm

11g 54mbps: -77dbm

11n ht20 mcs7: -74dbm

11n ht40 mcs7: -71dbm

11a 6mbps: -92dbm

11a 54mbps: -75dbm

11ac vht20 mcs8: -70dbm

11ac vht40 mcs9: -65dbm

11ac vht80 mcs9: -61dbm

transmission power

2.4 ghz < 20dbm (eirp)

5 ghz < 23dbm (eirp)

wireless security

wpa-psk / wpa2-psk / wpa3-sae

wireless functions

enable/disable wireless radio, wireless schedule, wmm, wireless
statistics

wireless

dhcp

server

software

dimensioni (w x d x h)

95×61.05×165.97 mm

interfaces

1× gigabit lan/wan port

1× gigabit lan port

1× nano sim card slot

button

wps/reset button

network type

eu:

fdd-lte: b1/b3/b5/b7/b8/b20/b28 (2100/1800/850/2600/900/800/700 mhz)

tdd-lte: b38/b40 (2600/2300 mhz)

hspa+/umts: b1/b5/b8 (2100/850/900 mhz)

hardware

package contents

4g+ cat6 ac1200 wireless dual band gigabit router (mb230-4g)

power adapter

rj45 ethernet cable

quick installation guide

environment

operating temperature: 0°c~40°c (32°f~104°f)

storage temperature: -40°c~60°c (-40°f~140°f)

operating humidity: 10%~90% non-condensing

storage humidity: 5%~90% non-condensing
